Nitrogen (IG-100)

iFLOW Technology

The iFLOW Fire Suppression System is a state-of-the- art delivery system that provides a regulated and effective discharge of inert gas clean agent.

IG100 iFLOW Container and Valve Assemblies

Description

iFLOW systems are configured around a range of eight container and valve assemblies.

Each basic assembly consists of:

  • Container c/w transport cap
  • Valve assembly
  • Container labels

A standard pressure gauge or a contacted pressure gauge can be fitted depending on the container size.

Each assembly is provided with a specific charge of Inert gas to a maximum pressure of 200 bar or 300 bar (+0 / -5 bar) at 15 °C.

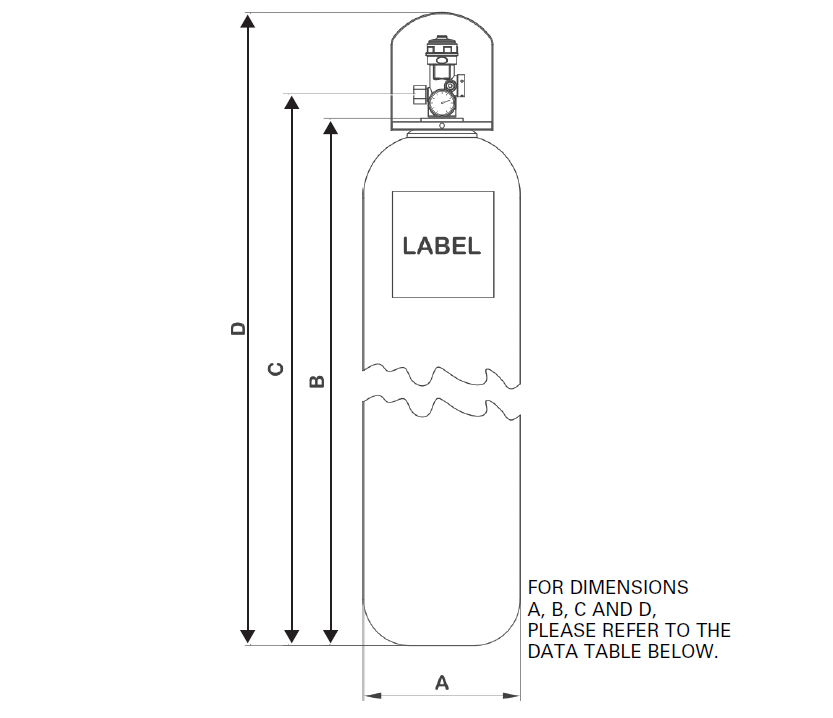

Container Valve Assembly

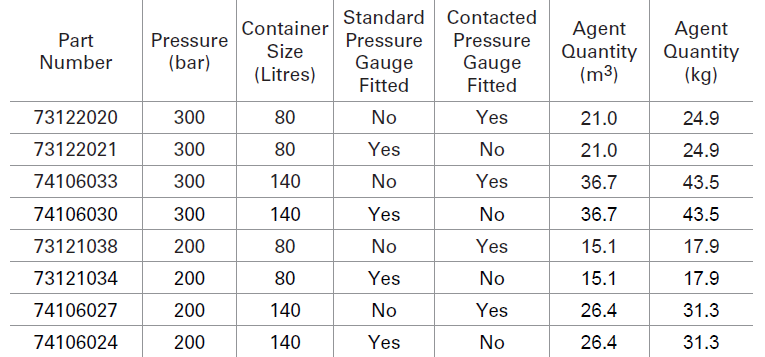

Filling Details for iFLOW Container and Valve Assemblies

LPG-1

Containers are designed, manufactured and marked in accordance with 2010/35/EC. 200 bar containers are
pressure tested to 300 bar and 300 bar containers to 450 bar.

Labels providing safety, maintenance and pressure temperature information are fitted to all containers.

Containers are coloured red to BS4800:04 E53 with a green top dome to RAL 7031. LPG and the product names listed in this material are marks and/or registered marks. Unauthorized use is strictly prohibited.

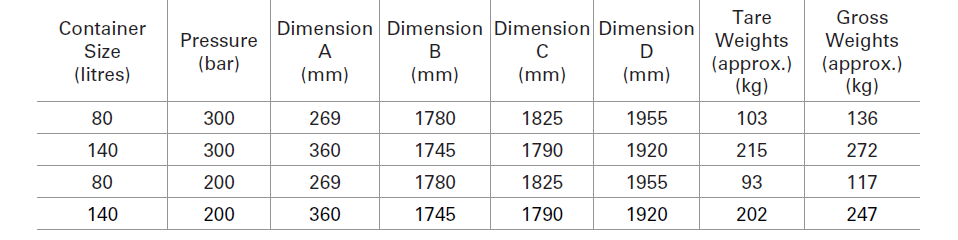

Dimensions and Weights for iFLOW Container and Valve Assemblies

LPG-1
